Replacement Key Switch Maintained On Position 22mm

Original price was: $24.95.Current price is: $19.95.

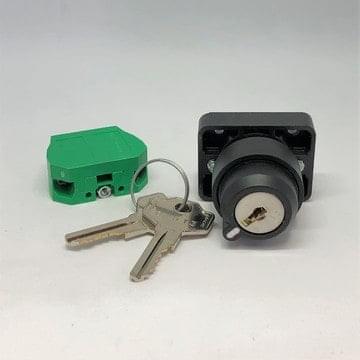

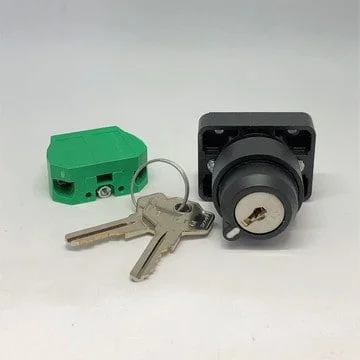

Key switch maintained on (key removable)

  • Fits 22mm holes
  • add NO or NC contacts as needed
  • Fits Most all brand balers and compactors

In stock (can be backordered)

SKU: 200507-1003 Category: Tags: , ,


Replacement Key Switch Maintained On Position 22mm

Replace the faulty key switch, lost key, Make Sure Your OSHA Compliant

Replaces any 22mm hole Switch

Works for most brand Balers or Compactors


Check for fit:

Remove old switch, it should measure about 7/8” in diameter.

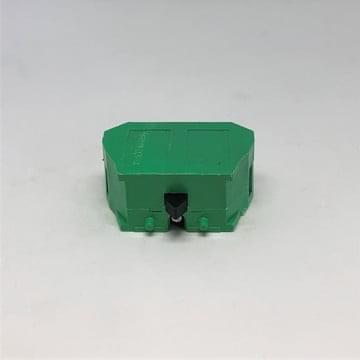

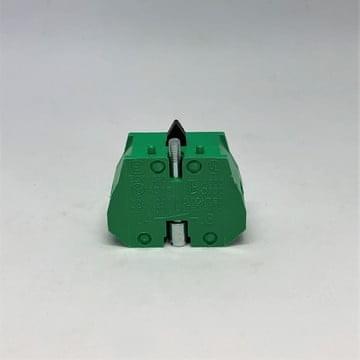

How to install: Disconnect power, and lock out- Tag out! Now you can remove the old switch (keep wires connected if you can), depending on space? You can mount the main switch body in the key switch hole.  Using the wires connected to the old switch Disconnect the old wires one screw at a time, and connect to the new switch. Once all wires are connected, mount the green contact to the key switch body.  Restore power and test.



Mounting hole: 7/8”

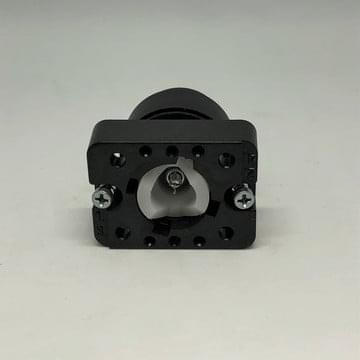

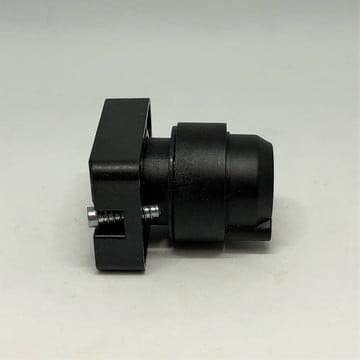

Sticks out in toward the inside of the panel: 1-5/8”

Key is removalable: Yes

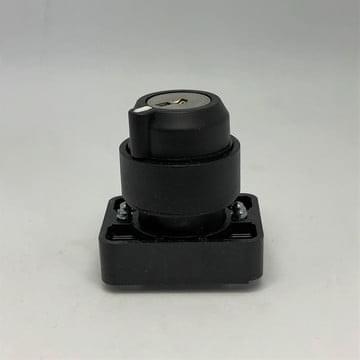

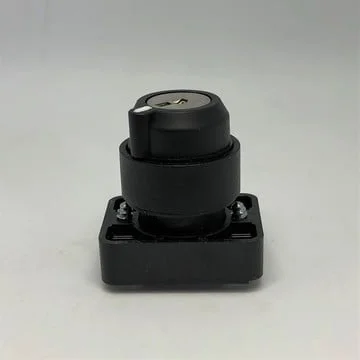

Height from panel with key: 1-7/8”

Height From panel without key: 1”


Have any questions? call: 1-888-440-2671


Additional information

Weight385 lbs
Dimensions3.5 × 3.5 × 3.5 in
