Description
🔧 Overview:

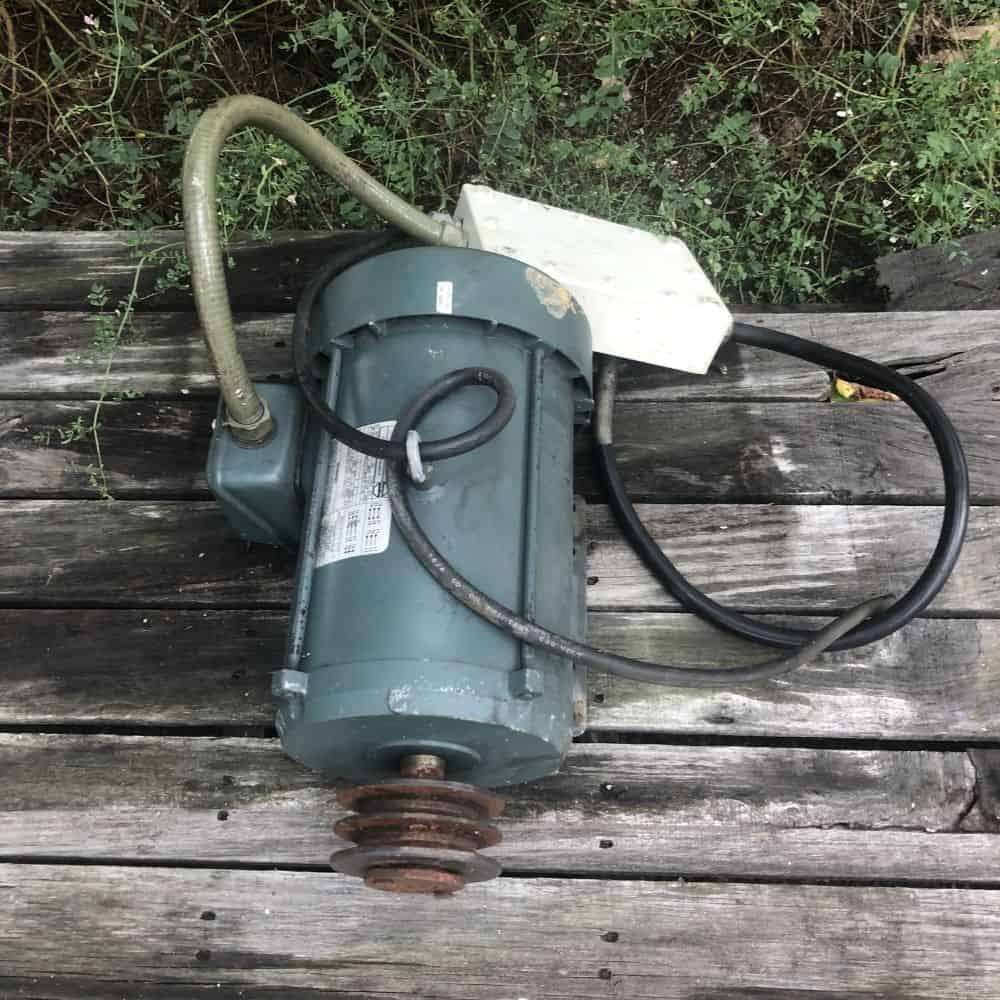

Industrial-grade Master Motor & Mechanical electric motor, removed from service in working condition. Great for shop machinery, retrofit projects, or parts stock. Built to last — not a cheap offshore unit.

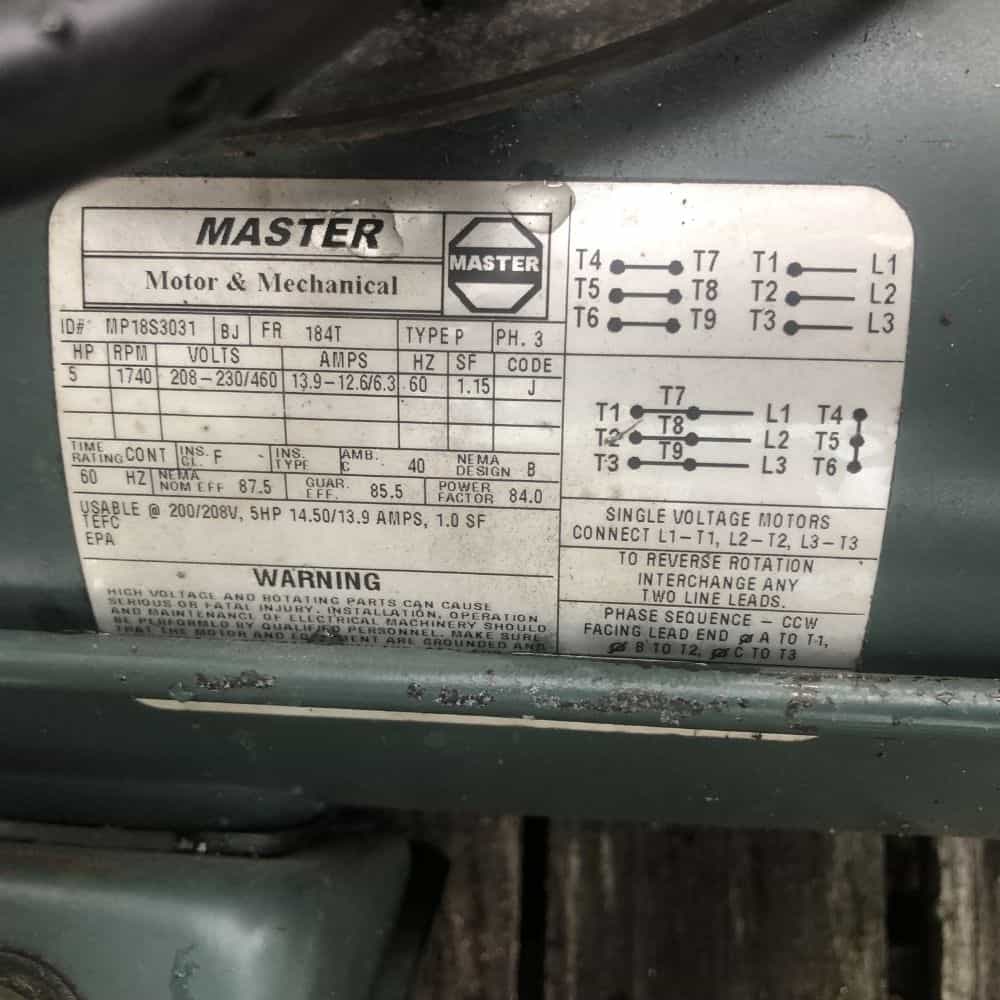

⚙️ Motor Nameplate Specs:
-
Horsepower: 5 HP
-
RPM: 1740
-
Voltage: 208–230/460V
-
Amps: 13.9–12.6 / 6.3 A
-
Frequency: 60 Hz
-
Phase: 3 Phase
-
Frame Size: 184T
-
Shaft Diameter: 1.125″ (1-1/8″)
-
Shaft Length: Approx. 2.75″
-
Enclosure: TEFC (Totally Enclosed Fan Cooled)
-
Service Factor: 1.15
-
NEMA Design: B
-
Insulation Class: F
-
Efficiency: 87.5%
-
Power Factor: 84.0
-
Weight Estimate: ~95–105 lbs
📐 NEMA 184T Frame Dimensions Table:
| Spec | Measurement |
|---|---|
| Shaft Diameter | 1.125″ (1-1/8″) |
| Shaft Length | 2.75″ |
| Shaft Height (base to center) | 4.5″ |
| Mounting Hole Width (C-C) | 6.25″ |
| Mounting Hole Depth (C-C) | 5.00″ |
| Motor Body Diameter | ~8.75″ (approx) |
| Motor Body Length (w/o shaft) | ~13″–15″ (est.) |

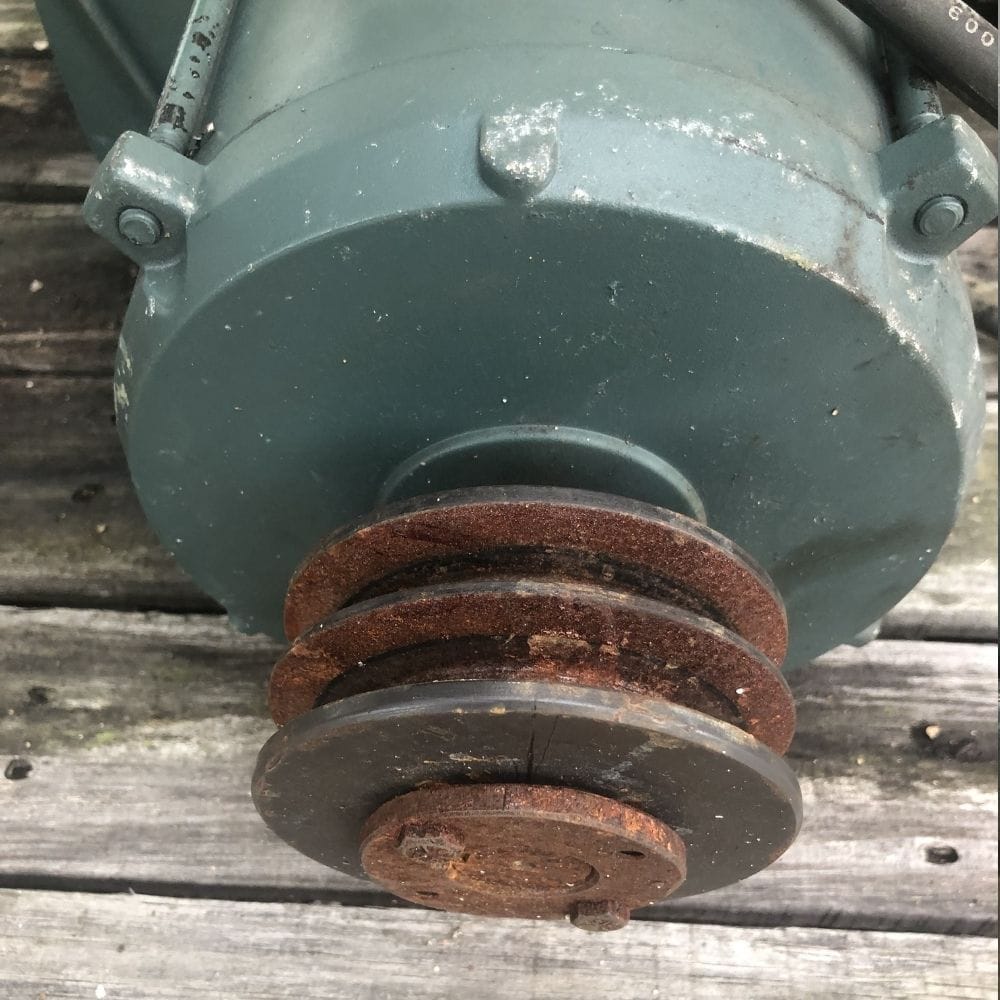

🧩 Pulley Info (Preliminary):
Currently fitted with a 2-groove V-belt pulley (approx. 6″ OD).
Exact size will be measured and added after weather clears. Rusted but intact and removable.
